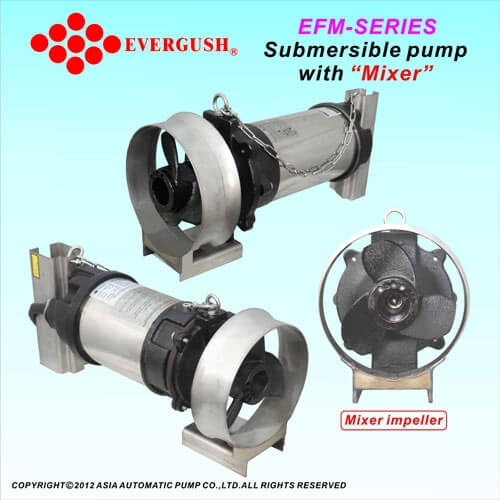

EFM Submersible Mixer Pump


  1.  Equipped with overload protector to protect motor from burnout easily due to abnormal conditions occurs.
  2.  Special Mixer impeller design to mix and agitate impurities in the water efficiently.
  3.  Adopts SIC/SIC(Silicon Carbide) dual mechanical seals to ensure best seal effect and reduce abrasion from waste water.
  4.  Guide rail device is available for safety purpose...

Catalogue EFM Evergush (50Hz)

EFM Evergush Perfomance Curves

  1.  Wastewater treatment of any industries.
  2.  River,ponds,lakes dredging.
  3.  Artificial water flow of amusement facilities.

     4.  Mix and agitate impurities in the water.

Ứng dụng thực tế của máy khuấy trộn chìm EFM

1.  Ambient Temperature:  +0~+40℃
2.  Liquid Temperature:  +0~+40℃
3.  24Hours continously running is allowed.

1. Output: 1/2HP~3HP
2. Motor Protection: IP68
3. Insulation: F
4. Pole: 4P
5. Voltage: 3phase220 or 380V*60HZ;3phase380~415V*50HZ (No single phase)
6. Rated Capacity Range: 1.8~6.8 M3/Min
7. Rated Flow Speed Range:  1.78~3.5 m/s
