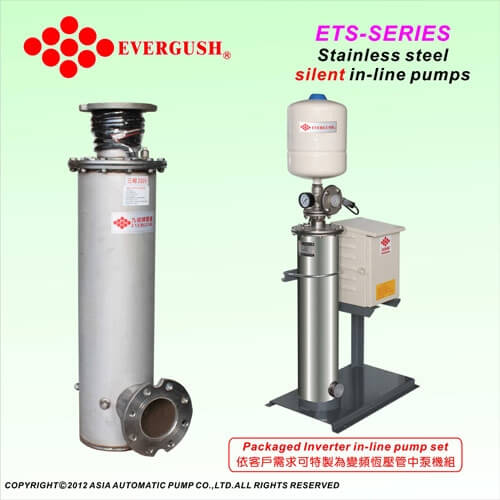

ETS Stainless Steel Vertical In-line Pumps

1. Fully stainless steel construction. Pump casing, multi-stages impeller,wet parts,shaft and motor shell are made in stainless steel for using water safety and clean ,and
can prevent from polluting water shortage tank.
2. Silent operation, less vibration. Vertical design for saving space.
3. Various installation options, vertical or horizontal installation ways are acceptable.

1.Water supply for buildings, apartments, factories, public facilities, villas, hotels, construction site, clean water systems.
2. For agriculture irrigation and sprinkler system.
3. Auto pressure boosting systems.
4. Air-condition, cooling circulation systems.

1.Ambient Temperature: 0~+40℃
2.Liquid Temperature: +2~+40℃
3.Working Pressure: Max.25 BAR.
4.Clean water or liquids without abrasives or corrosive chemicals.
5.Delvering underground water is forbidden.

1.Output: 1HP~35HP
2.Motor Protection: IP68
3.Insulation: B
4.Pole: 2P
5.Voltage: 1phase 110;220V (1hp~2hp)
3phase 220/380/440/660
6.Frequency: 60HZ
(50HZ motor is available upon customer's request.)
7.Suction/Discharge: 1.5” ~4”
8.Max.Head: 210 M
9.Max.Capacity Range : 18~66 M³/HR
